Vespa PX 200 [1981-1997] - racing clutch with Z23 sprocket straight teeth

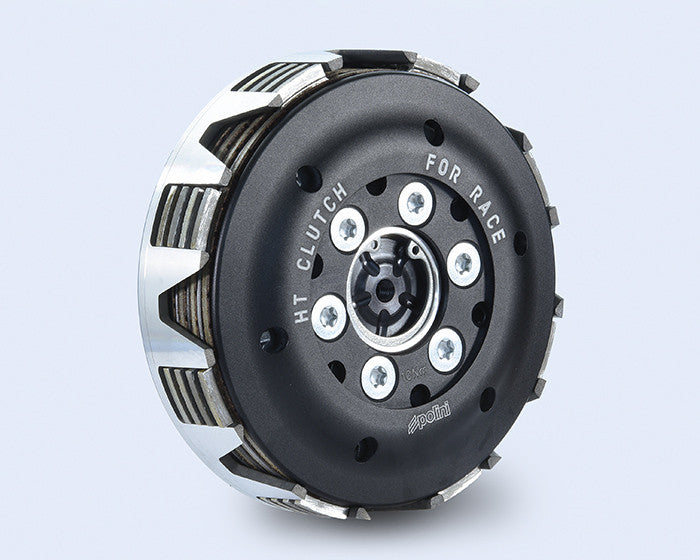

POLINI racing clutch Z23 for Vespa PX 200

The POLINI racing clutch with Z23 gear ring and straight-toothed pinion is designed for the Vespa PX 200 from the 1981-1997 model year range. The clutch was developed for racing use and uses a reversed mode of operation: the unit connected to the crankshaft is the inner hub, while the outer bell works separately from it.

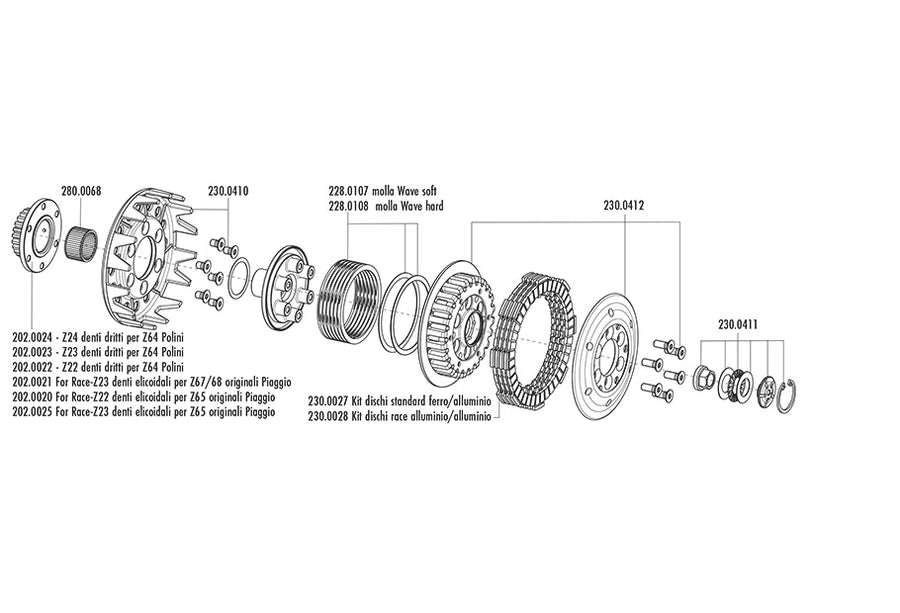

Function and structure

The design combines a pressure plate based on thrust bearings with an aluminum bell. The block cover has an oil collection channel. As a result, central components of the coupling are specifically tailored to the requirements of the area of ​​application.

• Sprocket Z23 with straight teeth
• Aluminum bell
• Pressure plate on thrust bearing
• Covering the block with oil collecting channel
• Adjustable clutch spring force

Coordination of the translation

The spring force can be adjusted to the desired clutch setting. In addition, the system allows selection of the gearing of the primary wheel to fine-tune the gear ratios. The gearshift is designed for precise and smooth gear changes.

Vehicle assignment

Suitable for Vespa PX 200, years 1981-1997. The clutch belongs to the engine and clutch product category and is aimed at applications in which a racing clutch with a Z23 pinion and straight teeth is to be used.
