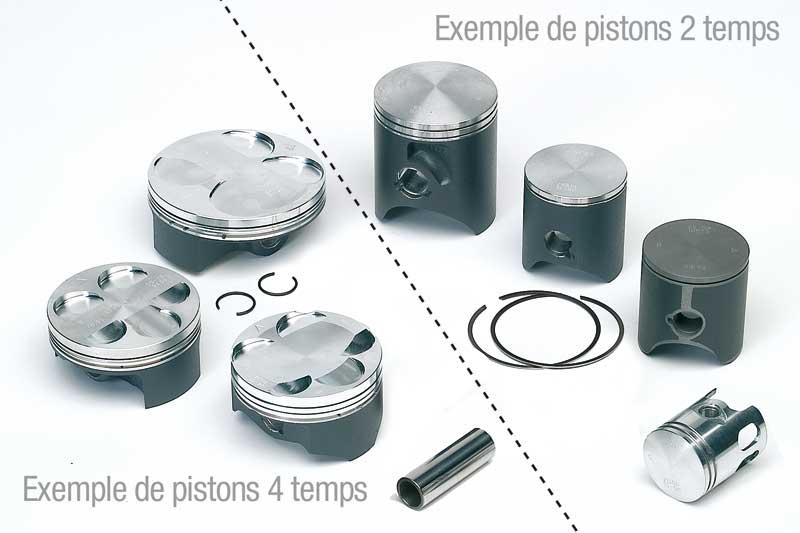

Scorpa TY 125 [2015] - Replica forged pistons

VERTEX Replica forged pistons for Scorpa TY 125

The VERTEX Replica forged piston is intended as a forged aluminum piston version for the Scorpa TY 125 from 2015. This means that the vehicle assignment is clearly defined for this model and year of manufacture.

Execution and function

As a component from the engine, top engine and piston areas, the piston is classified for use in the upper engine area. The forged design and the aluminum used are central features of this version. Piston compression is designed as standard.

Technical data

• Brand: VERTEX
• Piston Type: Forged
• Material: aluminum
• Piston compression: standard
• Diameter Ø: 54.47 mm
• Letter oversize: 050
• Oversize: +0.05
• Bore diameter: 54.50 mm
• Rings Quantity: Set
• Stroke: 4T

Vehicle assignment

The replica forged piston is assigned to the Scorpa TY 125, built in 2015. When selecting, the specified diameter of 54.47 mm, the bore diameter of 54.50 mm and the oversize +0.05 should be taken into account.

Factual selection aid

Before ordering, check whether the technical dimensions of the existing engine match the specified piston data. The ring quantity is designed as a set. The oversize marking is 050.
