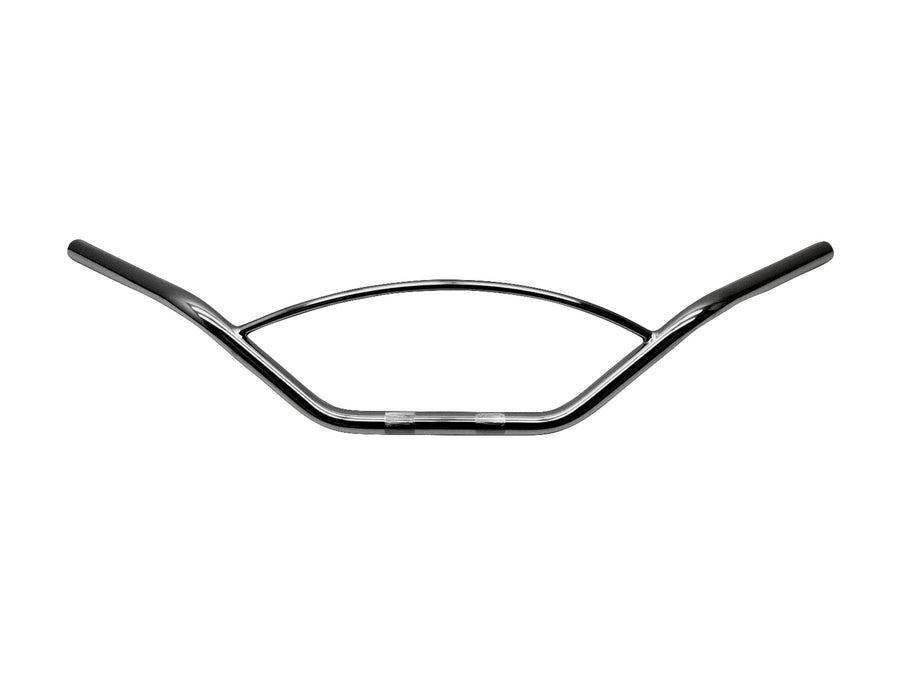

Motorcycle driver Ø 25 - handlebar with rounded strut Ø 12 mm, 870 mm wide, black

The motorcycle driver from Fehling, model Ø 25, is characterized by its robust construction. This handlebar is equipped with a rounded strut of 12 mm diameter and has a width of 870 mm. The coloring in black gives him an elegant and timeless design.

Product details

In addition to its optical quality, the handlebar with model number Ø 25 also offers functional features that make it special. It has a notch and a triple hole cable inner manual, which enables a clean and safe laying of the cables.

Technical specifications

• Width: 870 mm
• Height at the end of the external bend: 145 mm
• Depth back: 205 mm
• Height at the end of the end of the handle: 160 mm
• Intersection of the pipe outer edges: 230 mm

In addition to the main dimensions, the handlebar offers other important dimensions that are in the assembly and use of relevance:

• Height in attachment: 140 mm
• Depth back (pullback): 220 mm
• Maximum grip length: 205 mm
• Maximum clamping width: 177 mm
• Width of the knurling (outside): 120/60 mm

This handlebar is ideal for motorcyclists who value quality and functionality. The exact dimensions can vary depending on the type of assembly and model, which must be observed when installing.
