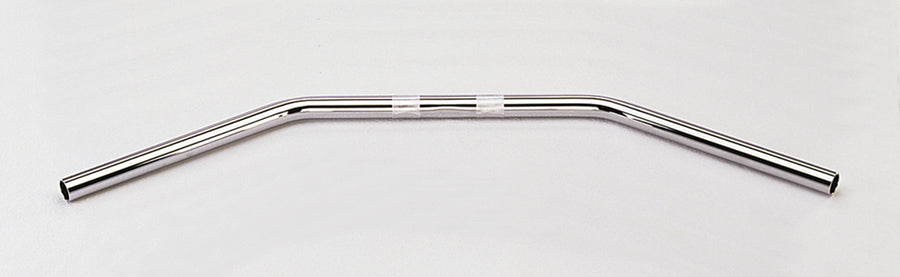

Motorcycle driver Ø 25 - Drag bar 820 mm wide

Drag bar 820 mm wide

Motorcycle handlebars with a diameter of 25.4 mm (1 inch).

Description

The motorcycle driver from Fehling, model Ø 25, is characterized by its robust construction and precise dimensions. The article Drag-Bar 820 mm wide is specially designed for different motorcycle models, whereby the exact years of construction are not specified.

• Technical dimensions (measured in the event of a vertical position):
• Width: 820 mm
• Height at the end of the external bend: variable
• Deep backwards: 165 mm
• Height at the end of the handle: variable
• Width at the intersection of the pipe outer edges: 330 mm
• Dimensions in attachment (can vary depending on the assembly):
• Height: variable
• Depth back (pullback): 145 mm
• Further dimensions:
• Maximum handle length: variable
• Maximum clamping width: variable
• Width of the knurling (outside): 120/60 mm

These dimensions must be taken into account during assembly, since they can influence ergonomics and driving behavior. The actual dimensions can vary depending on the type of assembly and model of the machine.

In this description, the technical details of the motorcycle driver were presented precisely and the variations in the dimensions that can arise from different assembly conditions were highlighted.
