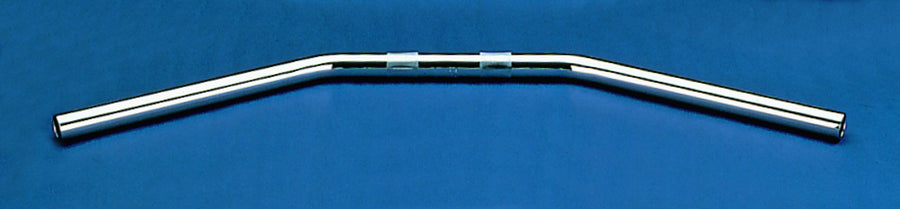

Motorcycle driver Ø 25 - Drag bar 720 mm wide

Product description: Drag bar 720 mm

The motorcycle driver "Drag Bar 720 mm wide" by Fehling, model Ø 25, is characterized by its construction for improved cable routing. This handlebar has a special notch that makes it easier to lay electrical cables.

Technical details

• Brand: False
• Model: Ø 25
• Article: Drag bar 720 mm wide
• Years of construction: K.A.

Measure

The dimensions of the handlebar vary depending on the assembly position and can therefore deviate from the standard dimensions. The following information relates to the basic configuration when installing vertically:

• Total width: 720 mm
• Depth back: 165 mm
• Maximum grip length: 240 mm
• Maximum clamping width: 180 mm
• Width of the knurling (outside): 120/60 mm

The dimensions can change depending on the cultivation and model of the motorcycle. In particular, the height and depth to the rear (pullback) are customizable and are up to 140 mm in the depth in the attachment.
