BMW R 1200 GS LC Rad [2013-2019] - Unpainted RAD Kit (from 2017)

Complete unpainted RAD kit for the tank and front area

The RAD kit comprehensively redesigns the tank and front area of the BMW R 1200 GS LC or R 1250 GS. Lightweight ABS components, stainless steel parts and CNC-machined aluminum air intakes combine narrower, more tapered styling with targeted radiator and airbox airflow.

Design and Function

• Tank covers for a new look and ergonomics.
• Very lightweight ABS side panels for the redesigned tank area.
• Radiator deflectors direct hot radiator air away from the rider's legs.
• The front element gives the front area a narrower, more tapered appearance.
• Stainless steel side elements influence airflow and increase the air supply at the airbox snorkel.
• The airbox snorkels replace the stock airflow restrictors and, according to the manufacturer, increase performance in the mid-range.

Materials and Details

• Side panels, radiator deflectors, side elements and center cover made of ABS.
• Sandblasted and electropolished stainless steel side protection elements.
• CNC-machined air intakes made from solid Ergal with an anodized finish.
• Laser-cut stainless steel mesh on the aluminum air intakes.
• Lateral “Unit Garage” logo on the air intakes.
• The front element has side mounts for the original R 1200 GS logo.

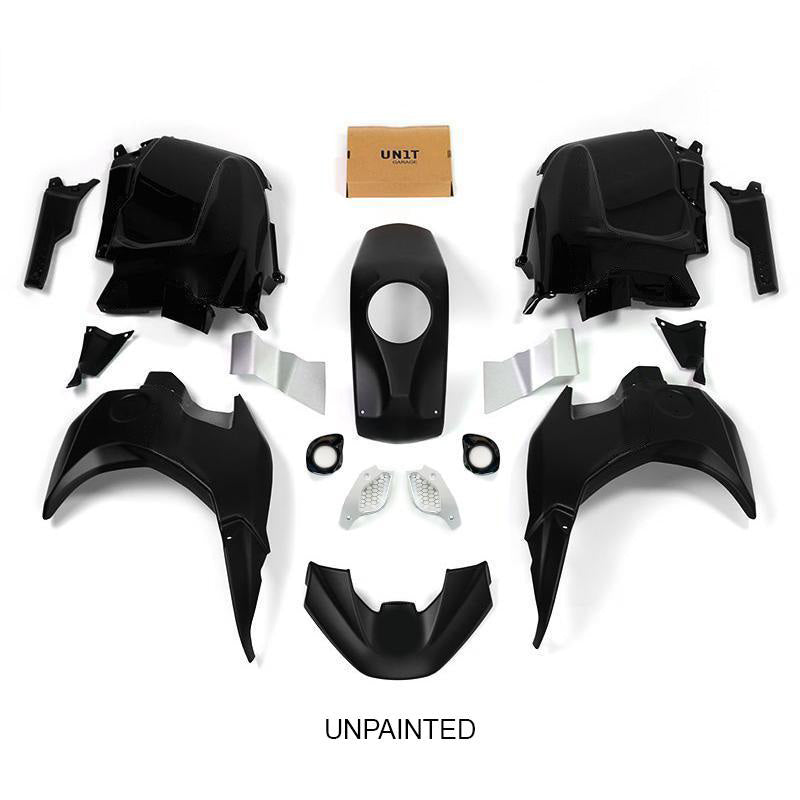

Scope of Delivery

• Tank covers
• Pair of side panels
• Pair of radiator deflectors
• Redesigned front element
• Pair of stainless steel side protection elements
• Airbox snorkel
• CNC-machined aluminum air intakes with stainless steel mesh
• ABS side elements with brackets
• ABS center cover
• Two pre-cut stickers replacing the removed original logos
• Screws, rubber components, fasteners, brackets and additional installation accessories
• Video installation guide

Installation

The individual fairing parts are prepared for quick installation on the tank covers and frame. Fasteners, rubber components, screws and brackets are included. The original R 1200 GS logo can be transferred from the motorcycle; alternatively, the two pre-cut stickers are available.

Compatibility

• BMW R 1200 GS LC, not Adventure; according to the manufacturer, for model years 2013 to 2019, although this version is designated as the kit from 2017.
• BMW R 1250 GS and R 1250 GS with RAD kit according to the compatibility information.
• The relevant model year of the motorcycle must be taken into account when selecting the kit.

Unit Garage continuously improves its products in detail. Images may therefore show an earlier version.
