KTM 300 XC W [2024] - 4X diaphragm valve system

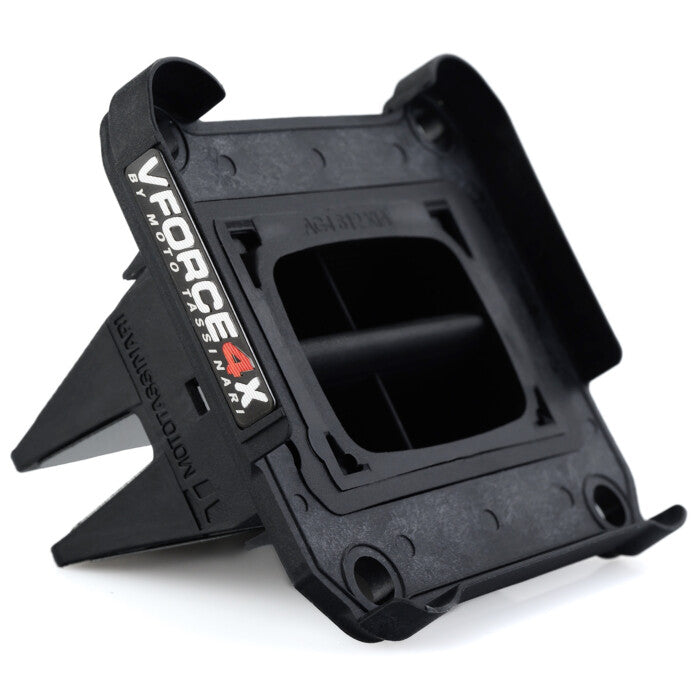

V-FORCE 4X diaphragm valve system for the KTM 300 XC W

The V-FORCE 4X reed valve system is designed for the 2024 KTM 300 XC W. It optimizes the intake area, thereby supporting more direct throttle response and improved peak performance. At the same time, the system is designed to extend the life of the slats.

Function and design features

• Supports improved throttle response and more peak power.
• The slat cage design does not require an additional overmolding step.
• The construction helps to extend the life of the slats.
• The existing OEM oil injector is used for installation.

Vehicle assignment

Suitable for the KTM 300 XC W, built in 2024.

Installation

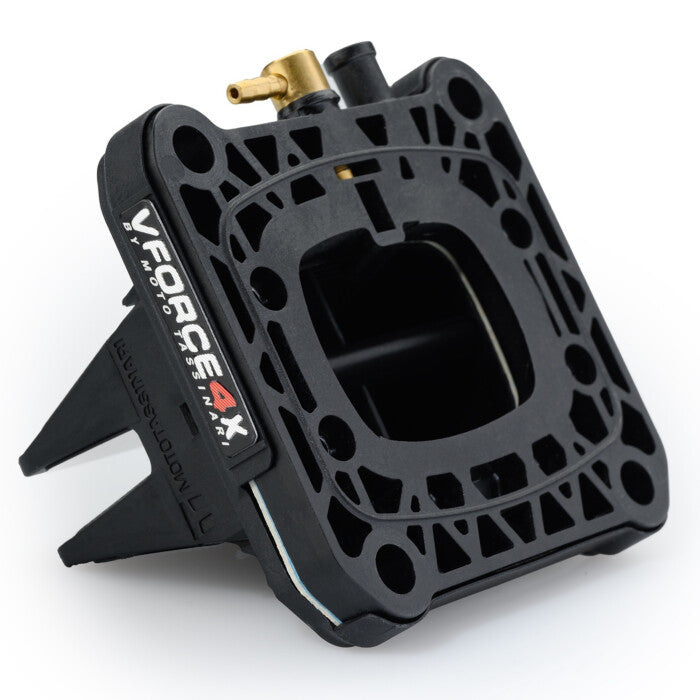

The assembly is designed to use the existing OEM oil injector. Oil lines and oil injectors do not need to be adjusted. No bleeding is required during installation. The OEM oil injector is not included; the image is for illustrative purposes only.

Technical note

The 4X diaphragm valve system combines the revised slat cage design with a design designed for easy installation for the vehicle assignment mentioned.
