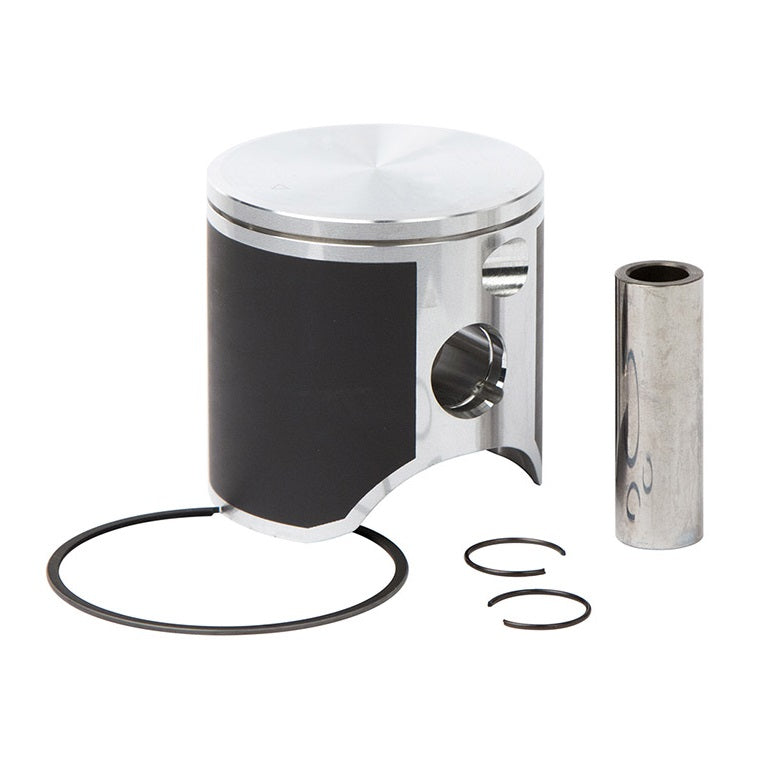

KTM 125 EXC Factory Edition [2010-2015] - Pro Version Forged Pistons

VERTEX Pro Version forged pistons for KTM 125 EXC Factory Edition

The VERTEX Pro Version forged piston is designed for the KTM 125 EXC Factory Edition from the full 2010-2015 model year range. As a forged aluminum piston, it combines precise manufacturing with the specified dimensions for suitable use in the 2T engine.

Design and technical data

• Piston Type: Forged
• Material: aluminum
• Piston compression: standard
• Piston diameter: 53.97 mm
• Bore diameter: 54.00 mm
• Letter oversize: D
• Oversize: +0.03
• Rings Quantity: 1
• Stroke: 2T

Precisely manufactured VERTEX component

The Pro version is based on a forged piston body and VERTEX's patented manufacturing process. High-quality raw materials are used for production. VERTEX is known worldwide for the production of engine components for motorcycles and is used as an OEM standard by many brands and by numerous racing teams.

Vehicle assignment

The forged piston is assigned to the KTM 125 EXC Factory Edition, built between 2010 and 2015. The combination of piston type, standard compression, 53.97 mm piston diameter, 54.00 mm bore diameter and oversize +0.03 makes selection easier based on the existing engine data.
