Kawasaki KX 450 F (KX 450 E) [2009-2011] - forged pistons

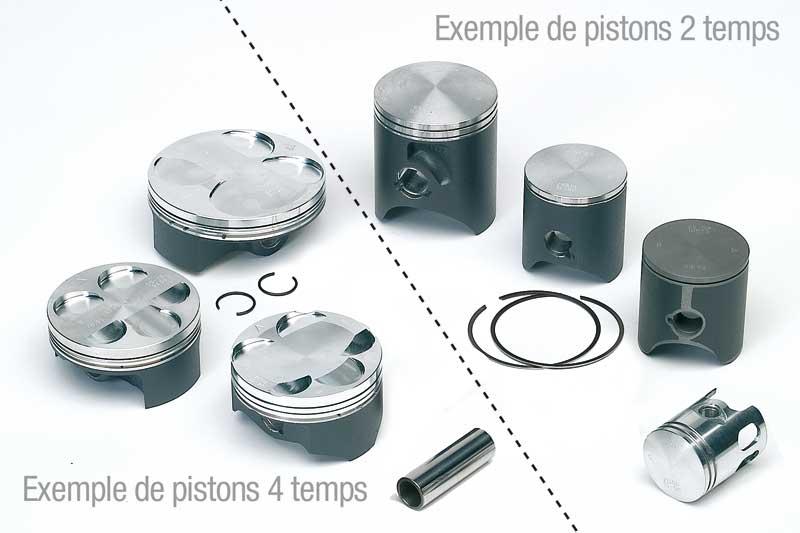

VERTEX forged pistons for Kawasaki KX 450 F

The VERTEX forged piston is intended for the Kawasaki KX 450 F (KX 450 E) built between 2009 and 2011. The technical characteristics support the targeted comparison with the existing engine and make the selection comprehensible based on piston type, diameter and design.

Technical execution

• Material: aluminum
• Piston Type: Forged
• Piston compression: high compression
• Diameter Ø: 95.96 mm
• Letter oversize: A
• Oversize: STD
• Bore diameter: 96.00 mm
• Piston rings: set
• Stroke: 4T

Vehicle assignment

The forged piston is assigned to the Kawasaki KX 450 F (KX 450 E) in the entire 2009-2011 model year range. Before making the selection, the specified diameter of 95.96 mm, the bore diameter of 96.00 mm and the markings A and STD can be compared with the existing motor data.

Selection note

The combination of aluminum, forged design and high-density piston compression describes the specific design of this VERTEX piston. The piston ring set is shown as a set. For a clear assignment, the vehicle model, year of manufacture and the dimensions mentioned should be taken into account together.
