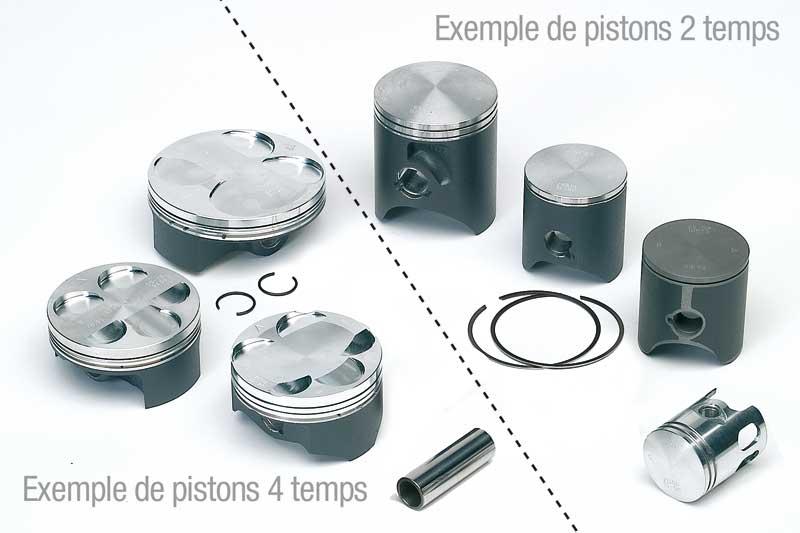

KAWASAKI KX 450 [2023] - GP Racer Choice forged pistons

VERTEX GP Racer Choice forged pistons for KAWASAKI KX 450

The GP Racer Choice forged piston from VERTEX is designed for the 2023 KAWASAKI KX 450. Its construction combines a forged aluminum design with piston compression designed for racing.

Function and construction

The shape and design of the piston crown are designed to improve the flame front and achieve a higher compression ratio. A special treatment limits friction. Reinforcements increase the stability of the piston structure and thereby limit the deformation of the piston crown.

The piston includes a short, chamfered piston pin with DLC (Diamond Like Carbon) treatment and a clip with an external nose. This design prevents the clip from rotating at high engine speeds. The very thin “GNH” piston ring is made of high-strength steel.

Technical data

• Brand: VERTEX
• Piston Type: Forged
• Material: aluminum
• Piston compression: Racing
• Diameter Ø: 95.96 mm
• Letter oversize: A
• Oversize: STD
• Bore diameter: 96.00 mm
• Rings Quantity: Set
• Stroke: 4T

Vehicle assignment

The forged piston is assigned to the KAWASAKI KX 450, built in 2023. The specified vehicle assignment serves as a selection aid for this model and this complete model year range.

Selection note

For the assignment, the diameter Ø of 95.96 mm, the bore diameter of 96.00 mm and the marking A and Oversize STD must be taken into account in particular.
