HUSQVARNA FC 250 [2023-2025] - WÖSSNER forged pistons

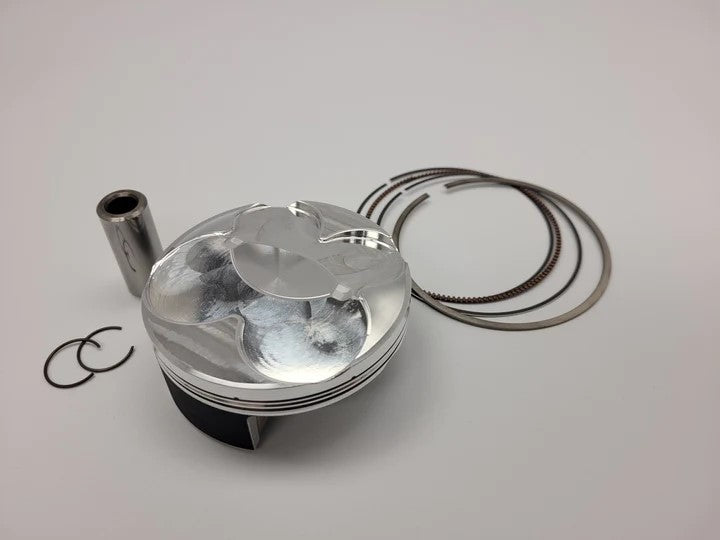

WÖSSNER forged pistons for the HUSQVARNA FC 250

The WÖSSNER forged piston is assigned to the HUSQVARNA FC 250 built between 2023 and 2025. The technical dimensions support a targeted selection of the right piston for the intended engine. As a version for a 4T engine, the component combines clearly defined dimensions with standard piston compression.

Technical features

• Material: aluminum
• Piston compression: standard
• Piston diameter: 80.97 mm
• Bore size: 81.02
• Letter oversize: C
• Oversize: +0.02
• Compression ratio: 14.8:1
• Piston rings: set
• Stroke: 4T

Vehicle assignment

The forged piston is intended for the HUSQVARNA FC 250, built between 2023 and 2025. The specified vehicle assignment and the dimensions listed serve as a guide when selecting a replacement piston for this model.

Selection based on measurements

With a piston diameter of 80.97 mm, bore size 81.02 and oversize +0.02, the component offers precise data for assignment. The oversize letter C completes the measurements. The compression ratio of 14.8:1 and the standard piston compression clearly characterize the technical design.

The scope of delivery includes a piston ring set in accordance with the technical information. Before making a selection, the diameters mentioned, the oversize and the vehicle assignment should be compared with the existing engine.
