Honda CRF 450 RWE [2025] - Connecting rod rod kit - Honda CRF 450

HOT RODS connecting rod kit for the Honda CRF 450 RWE

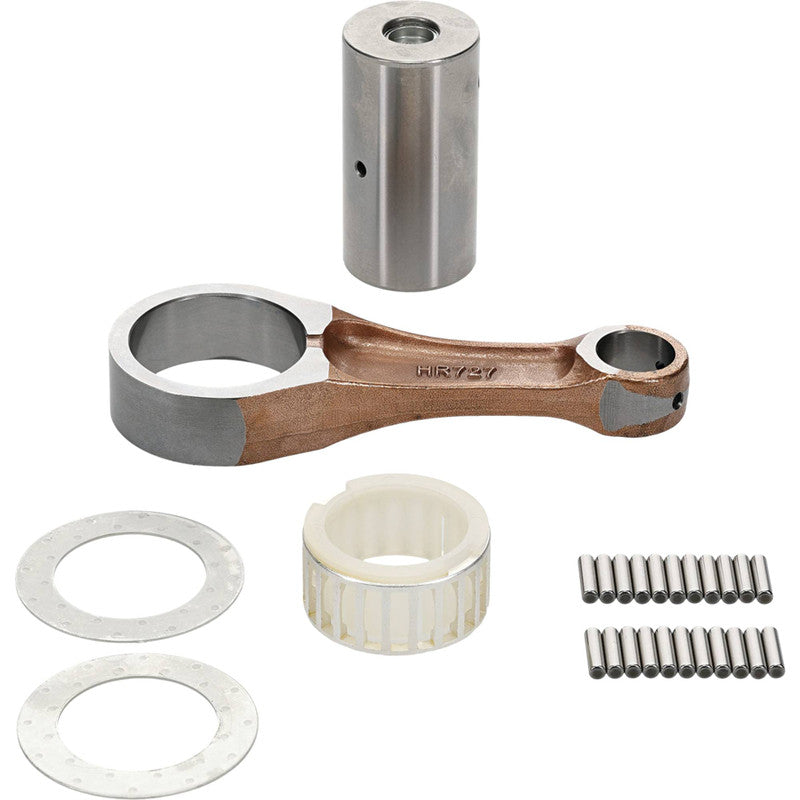

The HOT RODS connecting rod kit is designed as a replacement solution for reworking hot rods and OEM crankshafts. The kit includes the connecting rod, crank pin, crank pin bearing and upper connecting rod bearing. Thrust washers may also be part of the kit.

Function and execution

In a four-stroke engine, the connecting rod connects the piston to the crankshaft and transmits the movement to the crank drive. The design is tailored to the specified dimensions and thus supports the targeted selection of a suitable connecting rod set for the specified vehicle application.

Technical data

• Engine type: 4-stroke
• Large end, outer diameter: 61,500 mm
• Connecting rod, big end I.D.: 43 mm
• Connecting rod, big end width: 19 mm
• Connecting rod center-to-center: 117 mm
• Connecting rod, small end, inner diameter: 20 mm
• Connecting rod, small end, width: 19 mm
• Small end, outer diameter: 31 mm

Vehicle assignment

The connecting rod kit is assigned to the Honda CRF 450 RWE in the full 2025 model year range. Before making your selection, please compare the technical dimensions with the existing crankshaft and the intended engine structure.
