Ducati Panigale V4 S [2025] - Hypure brake caliper left

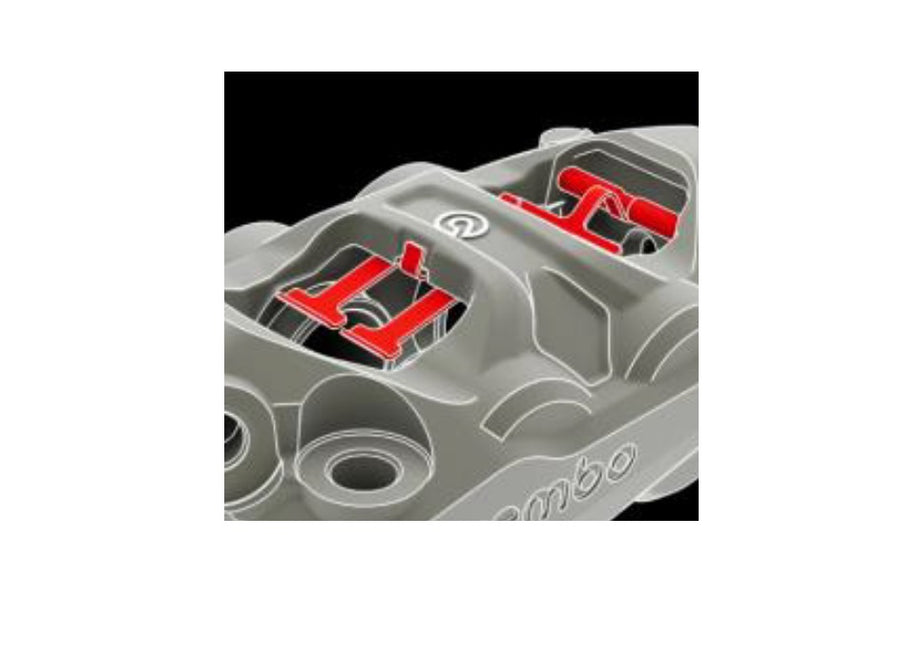

BREMBO Hypure brake caliper left for Ducati Panigale V4 S

The BREMBO Hypure brake caliper on the left is assigned to the Ducati Panigale V4 S from 2025. Its asymmetrical design combines low component weight with high rigidity and supports precise modulation when braking.

Function and construction

The patented spring/pad/pin system with a specially developed contact surface between the brake caliper and pad minimizes residual torque. Advanced heat transfer supports consistent braking performance. Compared to reference calipers in its class, the Hypure achieves a 10% weight reduction with the same deformation level and same application.

Technical data

• Position: front left
• Type: radial
• Construction: one-piece
• Material: aluminum
• Manufacturing: CNC milled
• Color: steel
• Piston: 4 x Ø 30 mm
• Diameter Ø: 17 mm
• Center-to-center distance: 100 mm
• Brake disc compatibility: Ø 290 to 340 mm, thickness 5 mm

Vehicle assignment

The brake caliper is assigned to the Ducati Panigale V4 S, built in 2025. Compatibility with two brake discs is intended for the application.

Execution

The clear lines and the steel-look surface combine a functional design with BREMBO's Hypure design philosophy. The version is suitable for drivers who want to specifically replace the left front brake caliper of the Ducati Panigale V4 S or who want to select their braking system to suit the technical requirements.
