Can Am Outlander 400 EFI XT 4 WD [2012-2014] - Connecting rod rod - Can Am

HOT RODS connecting rod for Can Am Outlander 400 EFI XT 4 WD

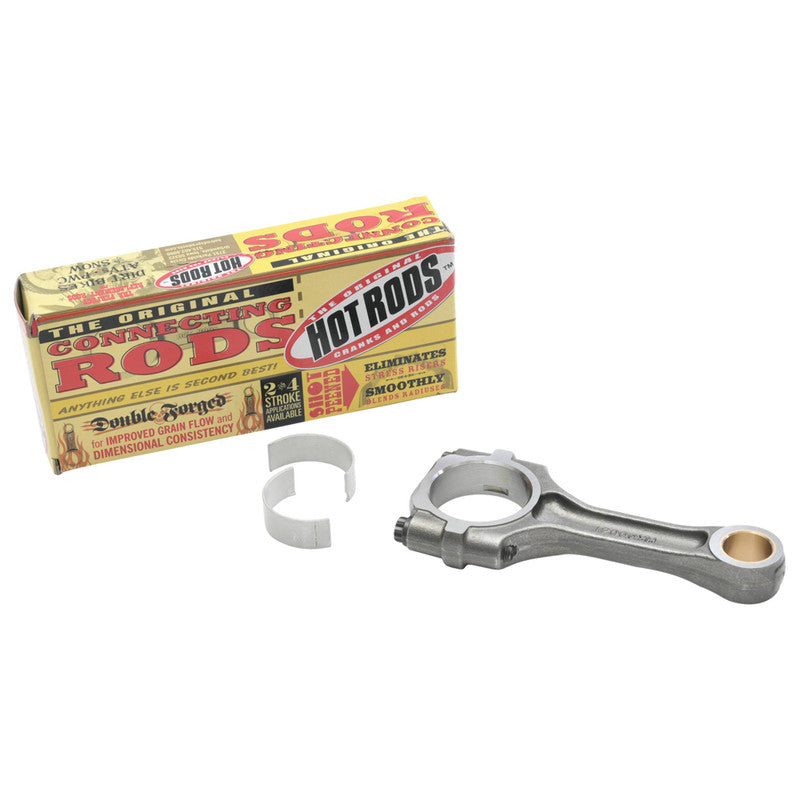

The HOT RODS connecting rod is designed as a connecting rod set for the 4-stroke engine of the Can Am Outlander 400 EFI XT 4 WD. The kit includes the connecting rod, crank pin, crank pin bearing, upper connecting rod bearing and thrust washers if applicable. This gives you the components intended for reworking the connecting rod area in a coordinated combination.

Technical data

• Engine type: 4-stroke
• Large end, outer diameter: 61,500 mm
• Large End Inner Diameter: 43mm
• Large end, width: 19 mm
• Connecting rod center-to-center: 117 mm
• Small end, inner diameter: 20 mm
• Small end, outer diameter: 31 mm
• Small end, width: 19 mm
• Pack size: ea
• Quantity per unit: 1

Vehicle assignment

Suitable for the Can Am Outlander 400 EFI XT 4 WD, built between 2012 and 2014. The vehicle assignment refers to this complete model and year range.

Selection note

Before ordering, check the specified dimensions of the large and small connecting rod ends and the center-to-center length of 117 mm. The technical dimensions support the targeted selection of the intended engine and make it easier to compare it with the existing engine configuration.
