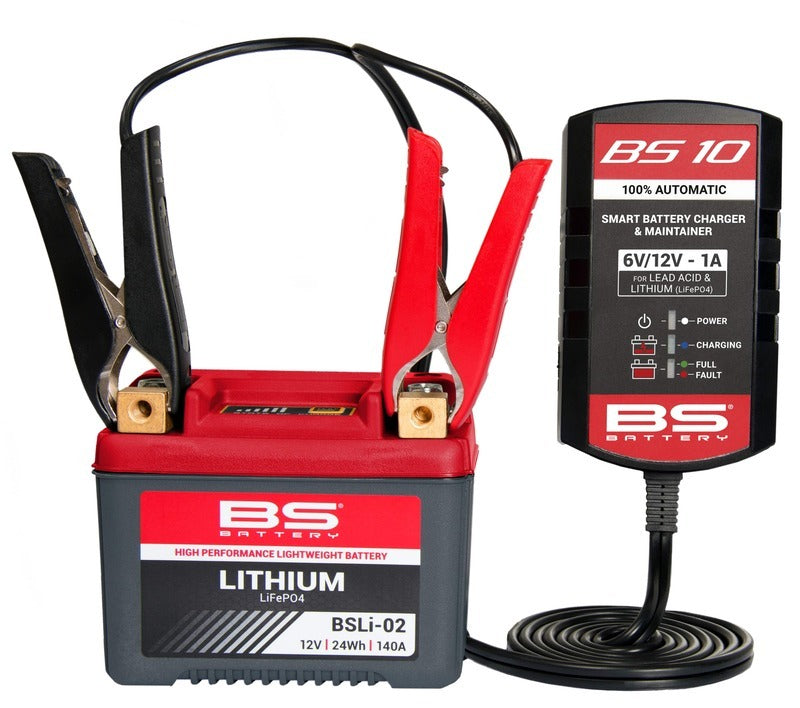

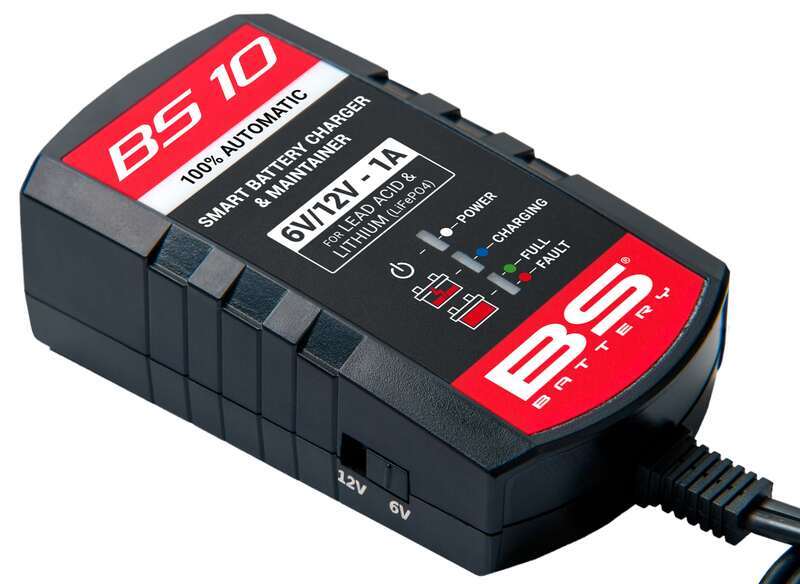

BS Battery BS10 – Smart Battery Charger for Lead-Acid and Lithium Batteries

One Charger for Classic and Modern Motorcycle Batteries

The BS Battery BS10 is a compact, fully automatic charger and maintainer for 6- and 12-volt lead-acid batteries as well as 12,8-volt lithium iron phosphate batteries. With a charging current of 1 A, it is particularly suitable for motorcycles, scooters, ATVs and other powersports vehicles.

Automatic 9-Stage Charging Program

Once connected, the BS10 carries out the charging process in a controlled sequence across nine stages. The charging algorithm adapts to lead-acid or lithium technology. For lithium batteries, the charging process ends once the battery is fully charged, without the float and maintenance stages intended for lead-acid batteries.

• 1 A charging current
• For battery capacities from 2 to 20 Ah
• Maintenance of lead-acid batteries up to 40 Ah
• Automatic detection of lead-acid or lithium technology
• 9-stage, automatically controlled charging process

Suitable Battery Types

• Conventional lead-acid batteries
• SLA and maintenance-free MF batteries
• AGM and Gel batteries
• Dry pre-charged DRY batteries
• Calcium batteries (Ca/Ca)
• Lithium iron phosphate batteries (LiFePO4) with 12,8 V

Safe and Straightforward

The spark-free connection and protection functions against reverse polarity, short circuits, overcharging and internal overheating help ensure safe operation. Once the battery voltage has been selected, the charger operates automatically.

Technical Specifications

• Input: 100–240 V AC, 50–60 Hz
• Charging voltage: 7,2 V DC in 6 V mode; 14,4 V DC in 12 V mode
• Charging current: 1 A
• Battery voltages: 6 V and 12 V lead-acid; 12,8 V LiFePO4
• Battery capacity when charging: 2–20 Ah
• Protection rating: IP22

Scope of Delivery

• BS Battery BS10 charger
• Connection cable with battery clamps

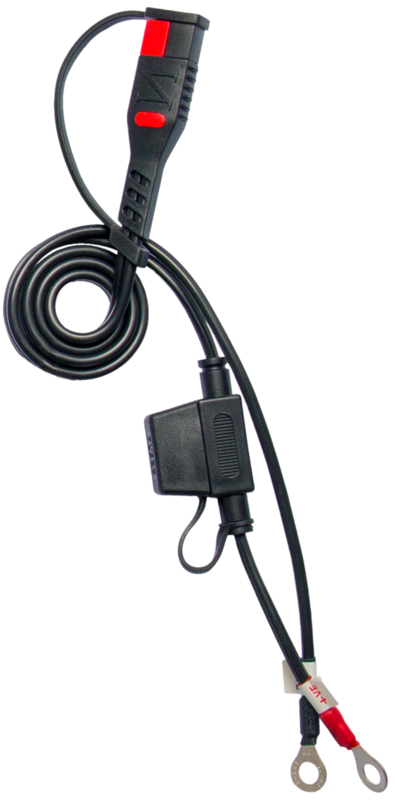

• Connection cable with M6 ring terminals for permanent connection to the vehicle

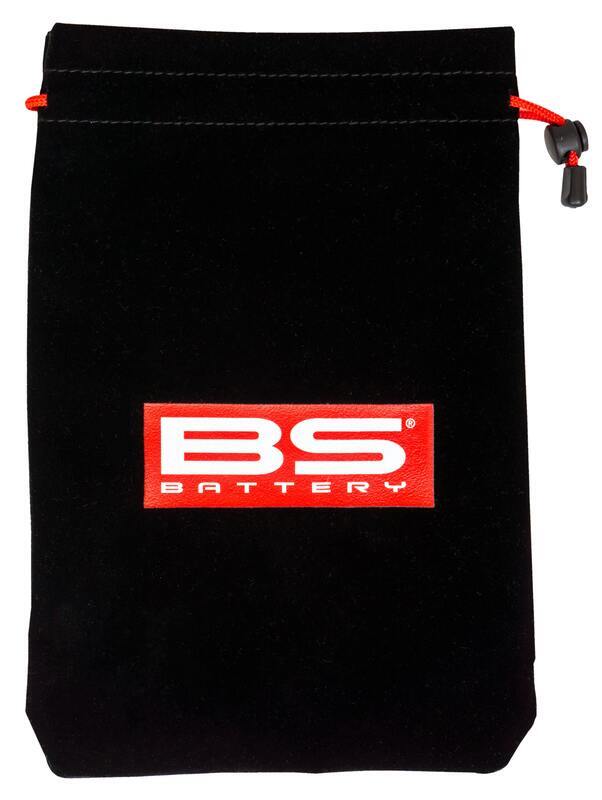

• Storage bag

Note: Before charging, check the voltage, battery type and the battery manufacturer's charging instructions. Lithium batteries may only be charged using the designated lithium charging program.
