Beta RR 350 4 T [2020-2024] - Rear wheel hub

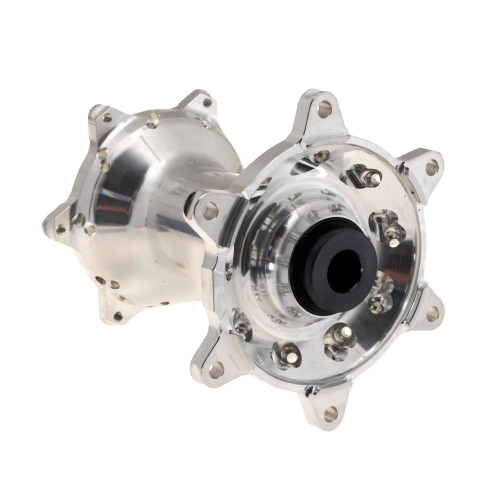

HAAN WHEELS rear hub for Beta RR 350 4 T

The HAAN WHEELS rear wheel hub is intended for the Beta RR 350 4 T in the 2020-2024 model year range. It forms the connection between the rear wheel, brake disc and sprocket and is compatible with the original brake discs and the original sprockets.

Made from aluminum

The rear wheel hub is milled from solid aluminum 6082 T6. The central tube and the spacer are made of aluminum 7075. This means that the construction combines different aluminum materials on the components intended for this purpose.

Technical features

• Position: rear
• Color: Silver
• Hub material: aluminum 6082 T6
• Central tube and spacer: aluminum 7075
• Equipped with Koyo bearings
• Assembly with assembly kit

The majority of rear hubs are mounted with 3 bearings instead of 2. The design of the spoke holder is differentiated depending on the hub variant: 65/85cc hubs are designed for 32 spokes, other hubs for 36 spokes.

Vehicle assignment

Suitable for the Beta RR 350 4 T, built between 2020 and 2024. The assignment refers to this vehicle model and the complete year range mentioned.

Scope of delivery

The scope of delivery includes the mounting kit.
