Aprilia RSV4 1100 ABS FACTORY [2025] - Hypure brake caliper right

BREMBO Hypure brake caliper right for precise braking control

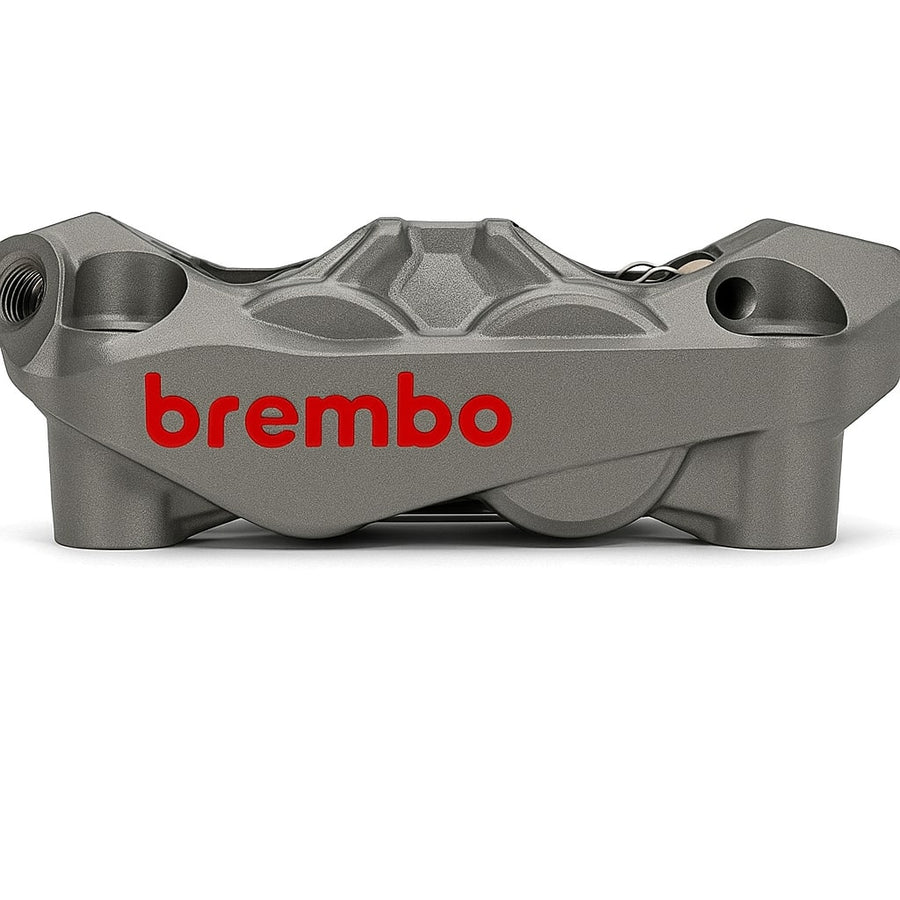

The BREMBO Hypure brake caliper right is designed for the front right position of the Aprilia RSV4 1100 ABS FACTORY, built in 2025. Its asymmetrical design combines a 10% weight reduction compared to reference calipers in its class with unchanged rigidity. As a result, the brake caliper supports agile handling and controlled braking.

Function and construction

The patented spring/pad/pin system with a specially developed contact surface minimizes the residual torque. Advanced heat transfer capability supports consistent braking performance. The one-piece, radial brake caliper has four pistons and an aluminum housing. The natural lines and the titanium color complement the technical focus of the Hypure.

Technical data

• Position: front right
• Type: Radial
• Construction: One-piece
• Material: aluminum
• Manufacturing: CNC milled
• Color: titanium
• Number of pistons: 4
• Diameter Ø: 17 mm
• Center-to-center distance: 100 mm
• Disc compatibility: Ø 290 to 340 mm, thickness 5 mm
• Type: Monobloc, for use with two discs

Vehicle assignment

Suitable for the Aprilia RSV4 1100 ABS FACTORY in the entire 2025 model year range. The version is intended for the right front installation position.
